Double Layer Advanced Drainage & Fiber Support Paper Machine Clothing - DLA47816SC-450CFM Coarse 8/16 Shed Fabric for Enhanced Performance in Wrapping

  • 1
  • 2

Pattern description : 8/16 Shed

Basis Weight (g/m²) : 850

Caliper (mm) New : 1.450

Fiber Support Index : 79

Paper Side Open Area : /

Brand Name : ATMC

MOQ : 1pc

Price : inquiry

Payment Terms : L/C,D/A,D/P,T/T

Packaging Details : Standard export ply-wood case

CMD Yarns Bottom : 0.50mm 11.3 /cm PET/PA

Fiber Support Point : 170 /cm²

Drainage Index : 22.2

CMD Yarns Top : 0.20mm, 0.27mm 22.6 /cm PET

Air Permeability : 360 CFM @ 125 Pa

Void Volume : 811 ml/m² (55.9%)

Caliper (mm) Critical : 0.970

Break Strength : ≥1100 N/cm

Structure : 2.5 Layer

Fabric Color : Light Green, Light Blue

MD Yarns Top : 0.27mm 40.0 /cm PET

MD Yarns Bottom : /

Elongation(50N/cm) : ≤0.40%

Contact Now

KRAFT DLA47816SC-450CFM Coarse 8/16 Shed Fabric for Enhanced Performance in Wrapping Paper and Board Grades

Designed to optimize the papermaking process, the KRAFT DLA36816SL utilizes a unique double-layer weave (8-shed over 16-shed) supplemented with a supportive CD yarn. This achieves an optimal balance of high fiber retention and rapid water removal. The fabric’s longevity is ensured by coarse, high-mass weft yarns on the wear side, which provide increased resistance to abrasion and mechanical stress, ensuring reliable performance over time.


Key Features

  • High Mechanical Stability: Double MD yarn lock construction on the wear side provides robust resistance to high machine-direction (MD) loads.

  • Excellent Dimensional Stability: The durable wear side structure effectively resists cross-direction (CD) ridging, ensuring consistent, stable running.

Product Parameters
Product Name Forming Fabric KRAFT DLA47816SM
Material Polyester monofilament
Function Paper Machine
Application Light GSM Kraft Paper, Wrapping Paper, etc.
Technical 1/1.5/2/2.5/3 layers forming fabric
Width Customized
Weight Customized
Fabric Color Customized
Product Images
Double Layer Advanced Drainage & Fiber Support Paper Machine Clothing - DLA47816SC-450CFM Coarse 8/16 Shed Fabric for Enhanced Performance in Wrapping
Top Side View
Double Layer Advanced Drainage & Fiber Support Paper Machine Clothing - DLA47816SC-450CFM Coarse 8/16 Shed Fabric for Enhanced Performance in Wrapping
Bottom Side View

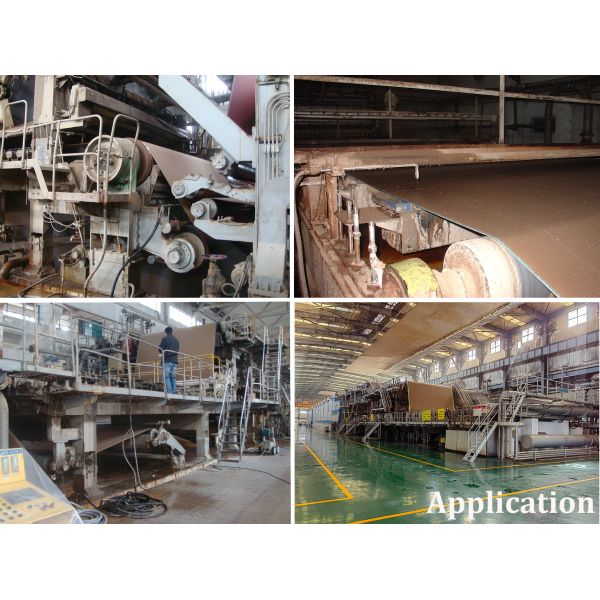

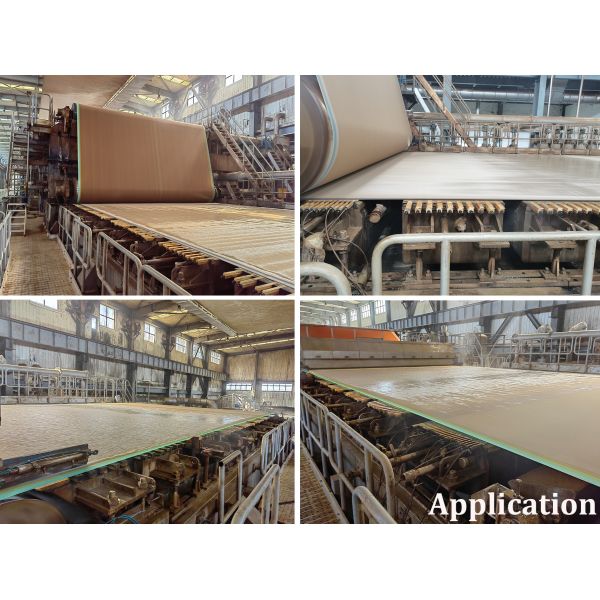

Applications
Wrapping and Packing Papers, Board Grades
Double Layer Advanced Drainage & Fiber Support Paper Machine Clothing - DLA47816SC-450CFM Coarse 8/16 Shed Fabric for Enhanced Performance in Wrapping
Double Layer Advanced Drainage & Fiber Support Paper Machine Clothing - DLA47816SC-450CFM Coarse 8/16 Shed Fabric for Enhanced Performance in Wrapping
